| Tên thương hiệu: | RUYA |
| Số mẫu: | DT200-B |
| MOQ: | 1 bộ |
| giá bán: | có thể đàm phán |
| Thời gian giao hàng: | 2-3 tháng |
| Điều khoản thanh toán: | T/T |

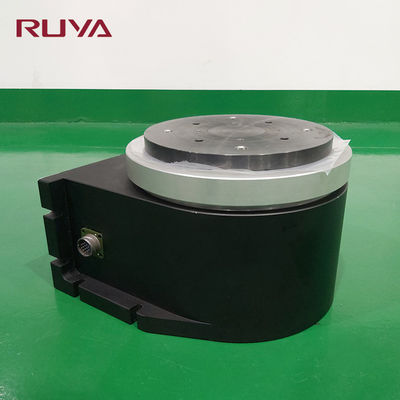

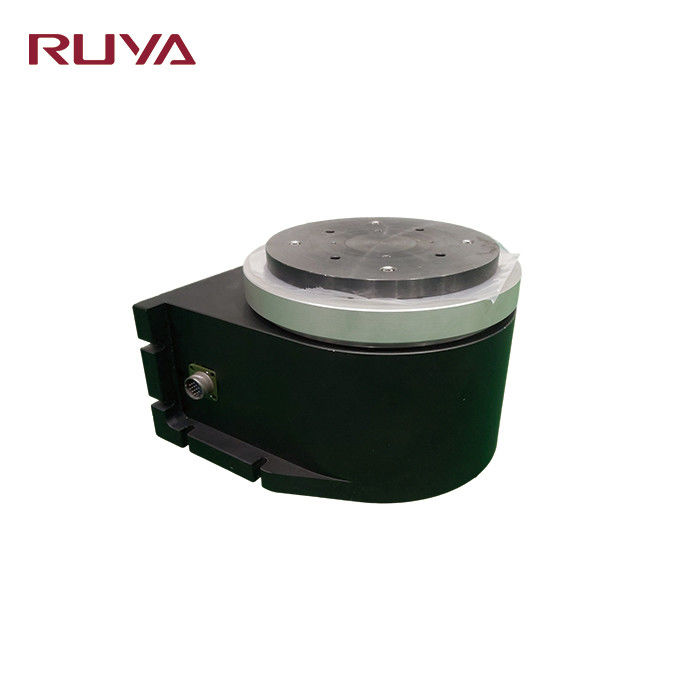

DT200-B High Precision Payload 10kg Single-axis Inertial Test Turntable
Product Description
DT200-B high-precision single-axis test turntable is mainly used to provide high-precision rotary reference during testing. It has the characteristics of high precision, stable structure, adaptability to different load test requirements, and automatic centering.
Product Parameters
|
Specification |
||
|
1 |
Load Weight |
10Kg |
|
2 |
Table Diameter |
Ф240mm |
|
3 |
Table Flatness |
0.02mm |
|
4 |
Table Runout |
0.02mm |
|
5 |
Rotary Accuracy Of Axis |
±3″ |
|
6 |
Positioning Error Of Angular Position |
±5″ |
|
7 |
Positioning Repeatability Of Angular Position |
±5″ |
|
8 |
Rate Range |
±0.0001°/s~±200°/s； |
|
9 |
Rate Resolution |
0.0001°/s |
|
10
|
Rate Accuracy
|
ω≤1°/s , 2×10-3 (1° average) |
|
1°/s≤ω<10°/s , 2×10-4 (10° average) |
||
|
ω≥10°/s , 2×10-5 (360° average) |
||
|
11 |
Maximum Angular Acceleration |
≥100°/s²； |
|
12 |
Structure |

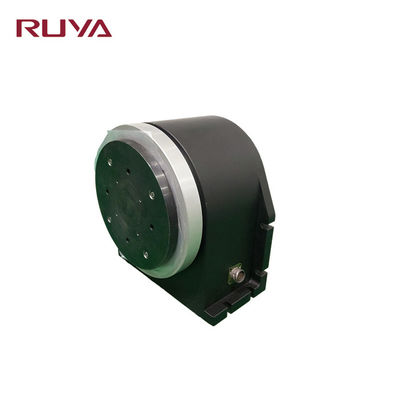

For both horizontal and vertical use |
|
13 |
User Slip Ring |
Customizable |
|
|
