| Tên thương hiệu: | RUYA |
| Số mẫu: | 2-STGZ/2 |
| MOQ: | 1 BỘ |
| Giá: | có thể đàm phán |
| Thời gian giao hàng: | 3 tháng |
| Điều khoản thanh toán: | T/T |

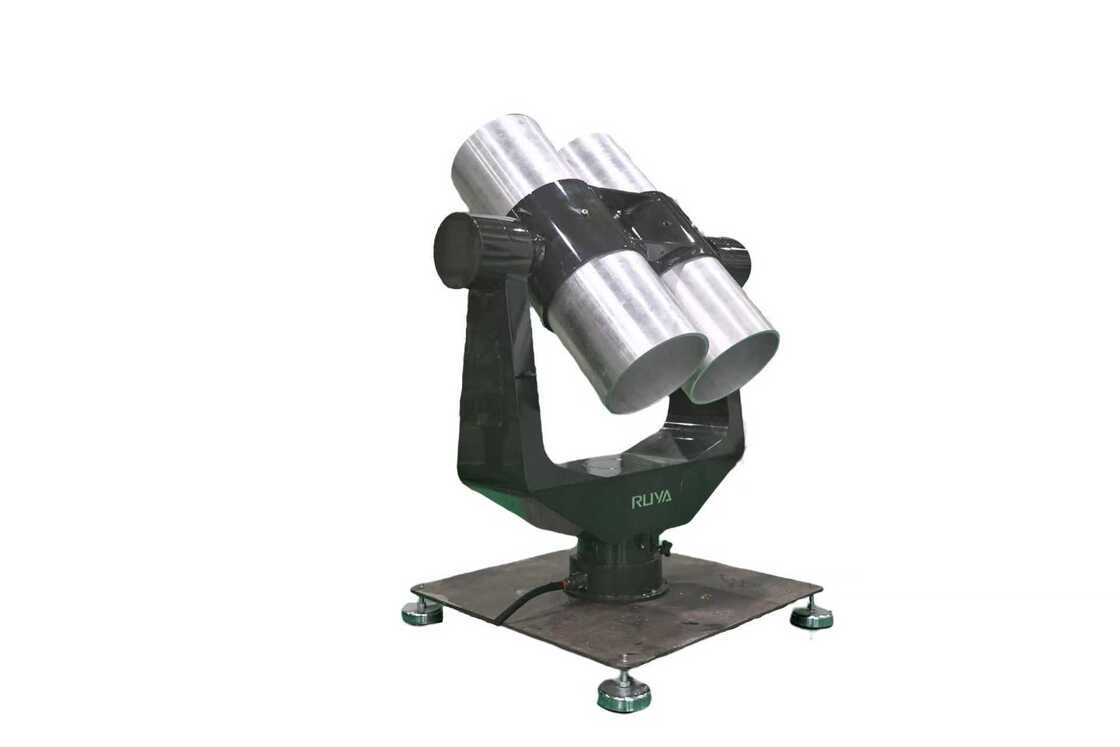

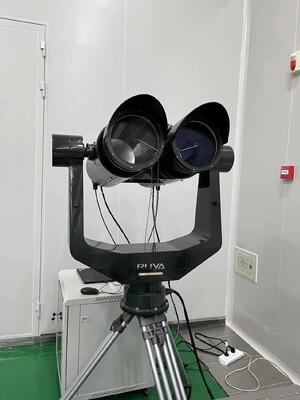

2-STGZ/2 Two-dimensional UAV Tracking Turntable Frame-type U-T Structure Dual Axis Tracking Device
Product Description
The 2-STGZ/2 two-dimensional tracking turntable has two degrees of motion freedom: azimuth and pitch.
It is a frame-type U-T structure two-dimensional tracking device, primarily used for tracking unmanned aerial vehicles (UAVs).
Product Parameters
1. Turntable Structure: The azimuth axis adopts a "T" shaped structure. The pitch axis adopts a "U" shaped ring frame structure.
2. Azimuth Rotation Range: -90º~+90° (to center point)
3. Pitch Rotation Range: -5°~+85°
4. Zero Point: Equipped with a code disk zero point
5. Pointing Accuracy (Static): 10″ (3σ)
6. Repeatability: 2″
7. Vertical Axis Angular Wobble: ≤2″
8. Horizontal Axis Angular Wobble: ≤3″
9. Angular Position Measurement Resolution: 0.0001°
10.Angular Position Measurement Accuracy: ≤5″
11.Load size: Two Φ250
12. Load weight: 30kg, double lens barrel
13. Turntable weight: 45kg
14. Limits: Dual protection with mechanical and electronic limits
15. Tracking error: <3″
16. Maximum azimuth speed: ≥20°/s;
17. Maximum azimuth tracking speed: ≥2°/s;
18. Maximum pitch speed: ≥20°/s;
19. Maximum pitch tracking speed: ≥2°/s;
20. Maximum azimuth tracking acceleration: ≥2°/s;
21. Maximum pitch tracking acceleration: ≥2°/s.
Our customers
|
|
